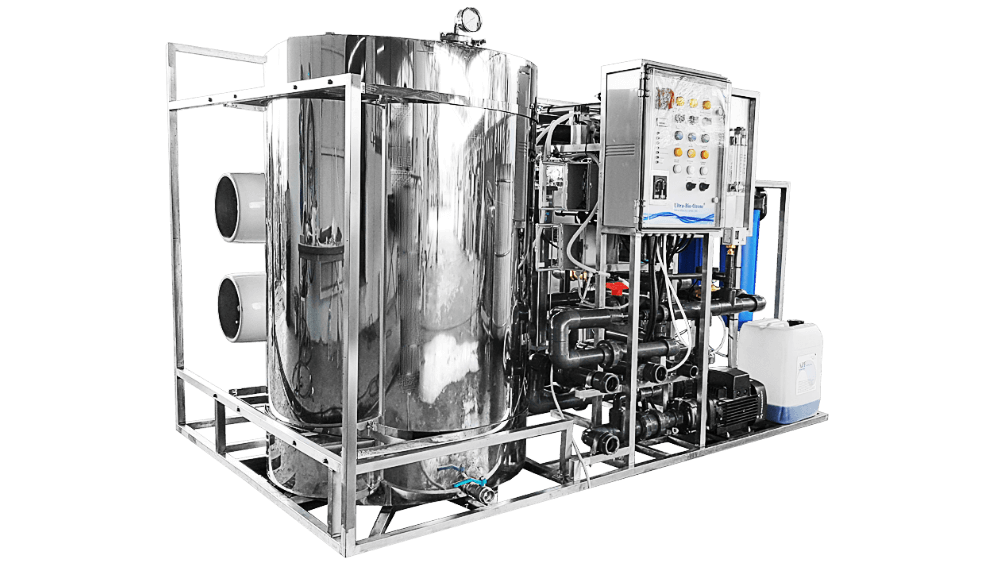

high-flow filtration
Sediment filter, UV, ozone and peristaltic pumps for possible chlorine residual injection
Drinking water high flow
Model : HIGH-FLOW FILTRATION
Drinking water high flow – Water purification process:
- Media filtration
- Ozonation
- Ultrafiltration membrane (s)
- Nanofiltration or reverse osmosis membrane (s)
- UV sterilization
- Charcoal
- Adaptable according to the quality of the incoming water
Production: 2,500 liters per hour / 60,000 liters per day
to produce drinking water
Specification
Filter media tank activated
- Material: stainless steel, grade 304
- Filter media filled: 405 kG (341 liters)
- Filtration speed: 15 m/h
Ozone generator and UV sterilizer
- Three ozone lamps 80W, 800mA
- Stainless steel case
- 220Vac 50 / 60 Hz, 240W
hollow fiber membrane
- Membrane material: PVDF
- Pore size: 0.03 micron
- Flow type: outdoor
- Maximum flow 6 m3/hour
Active membrane (2)
- Permeate flow: 8,000 GPD
- Operating pressure: 70 PSI
- NaCl release> 85%, MgSo4 release 99%
Energy consumption :
- Water production: 3,063 Watts/Hr (Max.), 13 A.
- Backwash operation = 2,600 Watts/Hr (Max.), 11.8 A.
